SparkFun Advanced Autonomous Kit for Sphero RVR

The SparkFun Advanced Autonomous Kit for Sphero RVR (pronounced „Rover“) provides all the functionality of the basic kit with the addition of time-of-flight distance sensing in the front and rear. Based around Raspberry Pi?s small yet powerful Zero W model, the kit provides distance sensing, global positioning, and vision to the Sphero RVR.
A pan-tilt device allows a camera to not only provide video from the viewpoint of the RVR, but provide the ability to look around it as well. In addition, the Raspberry Pi Zero W and the Camera provide enough power to run most of the machine vision programs that will run on the Raspberry Pi platform.
The Qwiic distance sensing boards use time-of-flight technology to provide highly accurate distance sensing for things like collision and obstacle detection. The GPS board provides global position capabilities to the RVR. Whether you?re setting up a geofence which the RVR must stay inside or mapping where the RVR has been, the board has the accuracy and capability to work for a small object such as the RVR. Pair these items with the already stellar sensor set of the RVR and the device has an advanced set of sensing abilities for autonomous mobility.
The kit itself comes with all the cables and mounting hardware including a separate mounting plate that provides extra space for mounting additional sensors or devices such as SparkFun?s Qwiic line, which pairs with the rest of the devices with ease.
Note: A Sphero RVR is not included with this kit and will need to be purchased separately.
Important: The SparkFun Advanced Autonomous Kit for Sphero RVR is available for pre-order. This will ship Fall 2019.

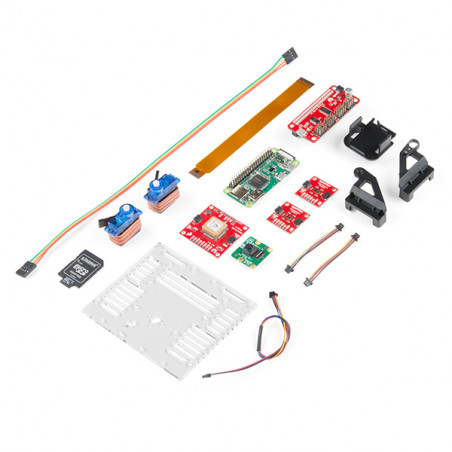

Includes:

Raspberry Pi Zero WH (Male Headers Pre-Soldered)
SparkFun Servo HAT
Raspberry Pi Camera V2
GPS Breakout UBlox SAM-M8Q (Qwiic)
2 x Distance Sensor Breakout – 4 Meter, VL53L1X (Qwiic)
Pi Zero Camera Interface Cable
16GB MicroSD card with custom firmware pre-loaded
Pan-Tilt Servo and Hardware Kit
Mounting Plate

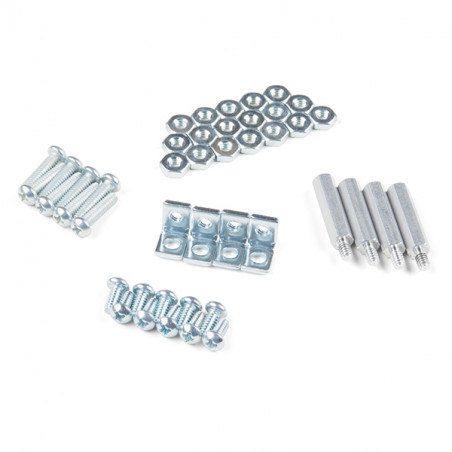

All the mounting hardware and cables required for working with the Sphero RVR

Read moreFeatures: Raspberry Pi Zero WH 802.11 b/g/n wireless LAN Bluetooth(R) 4.1 Bluetooth Low Energy (BLE) 1GHz, single-core CPU 512MB RAM Mini HDMI and USB On-The-Go ports Micro USB power HAT-compatible 40-pin header pins Composite video and reset headers CSI camera connector Servo HAT 16 Servo motor Pin Headers Qwiic Header for Qwiic Interface 4 Pin UART interface MicroUSB B Connector Raspberry Pi Camera Module V2 Image Sensor: Sony IMX219 Maximum Photo Resolution: 3280 x 2464 pixel Supported Video Resolution: 1080p30, 720p60 and 640x480p90 Interface: CSI connector (15cm ribbon cable included) Supported OS: Raspbian (latest version recommended) GPS Breakout Ublox SAM-M8Q 72-Channel GNSS Receiver 2.5m Horizontal Accuracy 18Hz Max Update Rate Time-To-First-Fix: Cold: 26s Hot: 1s Max Altitude: 50,000m Max G: ?4 Max Velocity: 500m/s Velocity Accuracy: 0.05m/s Heading Accuracy: 0.3 degrees Time Pulse Accuracy: 30ns 3.3V VCC and I/O Current Consumption: ~29mA Tracking GPS+GLONASS Software Configurable Geofencing Odometer Spoofing Detection External Interrupt Pin Control Low Power Mode Many others! Supports NMEA, UBX, and RTCM protocols over UART or I2C interfaces Distance Sensor Breakout – 4 Meter, VL53L1X Operating Voltage: 2.6V-3.5V Power Consumption: 20 mW @10Hz Measurement Range: ~40mm to 4,000mm Resolution: +/-1mm Light Source: Class 1 940nm VCSEL I2C Address: 0x52 Field of View: 15° – 27° Max Read Rate: 50Hz Mounting Plate Dedicated positions for the boards included (minus GPS board which mounts to the cover plate on the RVR) Additional mounting points for I/O via 4-40 hardware.
